AMS Short Caboose

The new AMS 0n3 & 0n30 Short Cabooses (Cabeese?) came and went this week.

4-side

Only about four years after they were supposed to be ready but finally arrive they did. I had twenty arrive and nineteen of them were spoken for before they got here. The 20th one is the subject of this initial mini review.

The review model is: –

AM53-0133 Short Caboose in D&RGW Flying Grande Livery numbered 0501 and is 0n3 gauge

1-New_BoxFirst up is new packaging compared to the earlier releases with a plain white card box with just one end label.

Simple, plain and no frills but can be a pain if you want to get it all back in the box once you have part two of the packaging out.

3-Clam_shellGone is the expanded polystyrene inner of old in favour of the clam shell type clear plastic inner so many are using now.

It does hold the model really well whilst isolating it from shocks to the outer box. It is a real pain to get back into the card box and get all the flaps shut though.

4-sideFirst impression are that its a nice model and whilst I haven’t checked it to drawing it looks about right although one or two bits do seem a bit over sized but I suspect that is a manufacturing compromise.

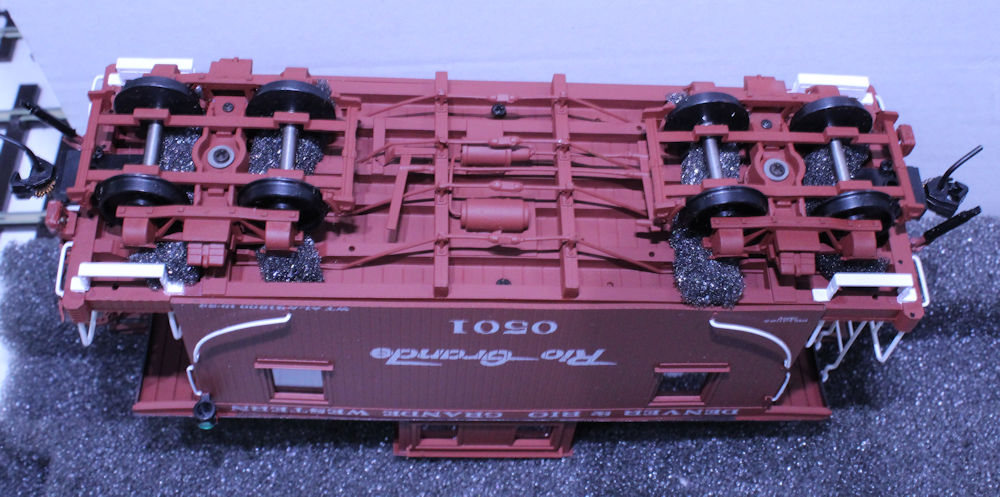

4-Underside

One to watch for when you take it out of the box are the four bits of foam pressed into keep the bogies from rattling about in transit.

I thought I might have to slacken the bogies off to get them out but they pulled out with a pair of tweezers. Once out the bogies are free to rotate.6-threequater

When you look at it more closely you start to realise its too clean. I am sure that when it came out of the shops all that white work may have been shiny white and squeaky clean but that wouldn’t have lasted five minutes.

That said its the work of moments to tone it down

Now this is me getting nit picky. Actually maybe its just me expressing personal preferences but some parts of this model won’t survive if it does stay on my roster.

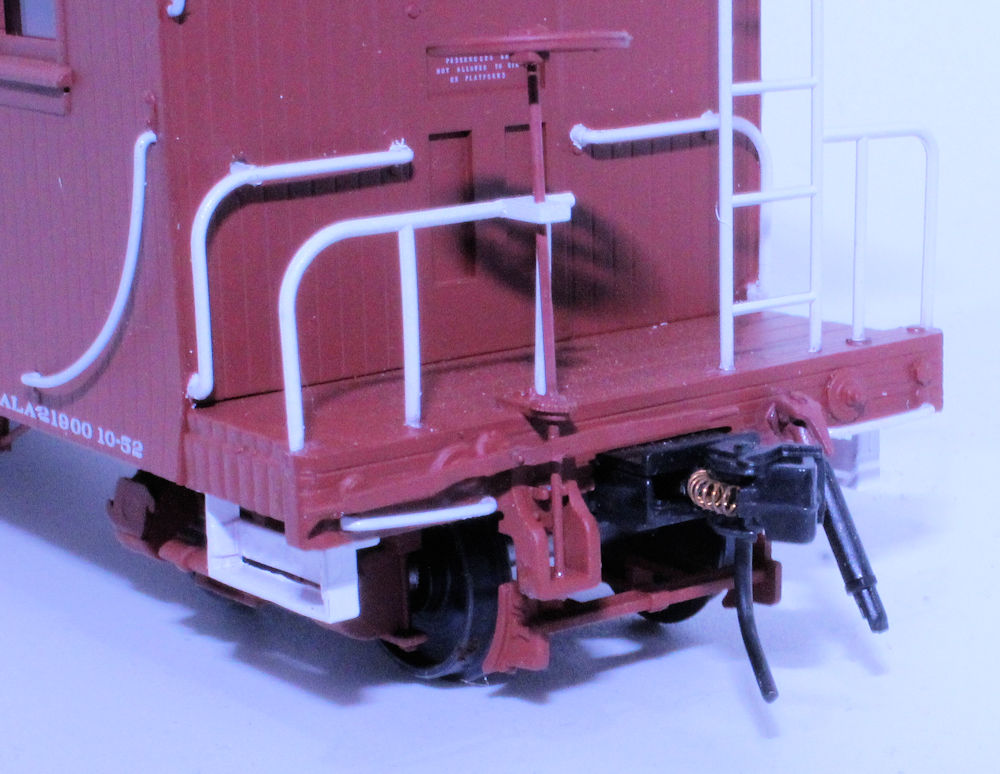

7_couplersCouplings:  0n3 and 0n30 couplers are quite different in size as the usual 0n3 item is properly scaled for the model and set higher than an 0n30 one whilst the 0n30 coupler is basically an HO one at the HO standard height.

The industry standard is the Kadee with a different one for each scale

AMS have decided to try and produce one coupler that does both and what they have come up with isn’t very good in either. It couples and stays coupled but doesn’t look right and doesn’t auto uncouple reliably. Its not very good at coupling either as the jaw and centering spring is way too strong. They also protrude from the end of the car to allow sufficient clearance on train set curves.

For reliable operation I’d change it for a Kadee 148 in HO8-ends or a 803 in 0n3. If it stays this one will get San Juan EVO couplers. The overscale and rigid representation of the air hose will be replaced with a San Juan rubber one as well.

Clearly this model has to be a compromise between fine scale model and practical survival on a model railway and to that end some of the details are a bit beefy and over scale.

The handrails appear too thick and could be replaced with wire but I think some judicious weathering will do the trick

This last photo is a comparison between the AMS car to the rear and a San Juan version to the fore (which I should have dusted before taking the picture). The San Juan car is one of the limited edition ready to run versions of their kit.

So which do I prefer? Well, I think it would have to be the San Juan one for the finesse of the details but I spent a lot of time getting it to run reliably. Then they’re not available today and would probably cost a lot more. The kit would be about 85 quid at today’s exchange rate.

Price for the AMS version? The first batch arrived at £79 but that was the pre vote price (see my other post on exchange rates). We’re estimating the next batch imported will be £90.

So, will I keep this one? Probably. I am thinking, EVO couplers, decent brake pipes, a Soundtraxx SoundCar decoder, speaker and keep alive. That will also provide interior lighting and marker light and then a battered look paint job. I have no idea when this might happen though

9-compare

Loading

Credit Cards and False Ideas About Security

This issue is becoming a bit of a bugbear and its clear that some people have got entirely the wrong end of the stick. The conversation goes like this…….

“I’ve phoned you with my order because I don’t want to use my card on the internet. Its not secure”

Well I am sorry but if you’re paying by card then its going on the internet! Why?

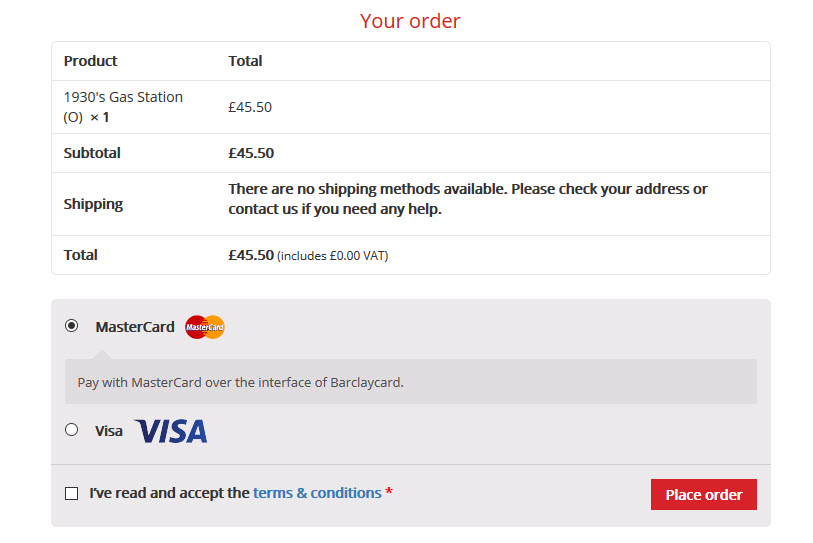

Website CheckoutIf you order online at our website then you’ll see a form like this. You fill it in with all your name and address details and then press “Place Order” and at that point my website shunts over to Barclays website where they have top level security and its their system that takes your card details. This is secure as it gets.

I don’t see your card details. They never enter my PC. I have no record of them and I can’t access them.WWW

Barclays send me a `token’ which is basically saying they’ve checked you’re good for the money and that I am OK to pack and ship your order. When I have done so I process that token, again on their website and again I don’t see your card details. At this point they actually take the money from your card and, eventually, send it to my bank account. All this is done on the internet.

Web TerminalIf you phone me with an order here is what happens. You probably catch me away from the PC or without the PC turned on so your order and card details get written down. When next at the computer I fire up the internet and log on to Barclays WWWWeb Terminal and enter all those details just written down. I do it on a form that looks like the one to the right.

I am entering all the same details you could be typing in and doing it on, effectively, the same form you could have used and its all done on the internet

If you see us at a show and pay by credit card then chances are you will be presented with a gadget that looks like thisCard Terminal. This is the Blielatest thing in card readers and its even more `space age’.

First of all the card reader is talking to my phone via Bluetooth which is a short range radio protocol.



WifiNext up my phone is connecting to the outside world via WiFi  which is a longer range radio protocol and is now often provided freely at venues but I also have my own WiFi unit that connects to the mobile phone signal.

WWW



After all of that the connection is made to the bank via the internet



Cash-machine-s



There is no escape. Even if you think, “I’ll use cash! That’ll show them”, you’re out of luck as the cash machine checks with your bank to see if you’re good for the cash via the internet





So I guess what I am saying is that ordering online is at least as safe as any other method and probably safer. There are some simple steps you can take to protect yourself.

  • Firstly only go to the payments page via the website you are shopping on.
  • Don’t go to any payments pages sent in e-mails from people you don’t know
  • Check in the address bar at the top of the payments page that the address start https://  [the S is the important bit as it denotes a secure connection]Secure Sign



I could probably have used bigger and more technically accurate words and left you bemused in the process but I think that is a reasonable layman’s description

Loading

Harping on about Switchstands

For some years now I have sold the PSC cast brass switchstand kits but they usually sell out at the first show I attend and then getting more and in any quantity is a bit of a faff to be honest. They have also been creeping up in price too. Harp Stand2For awhile I have been thinking there has to be a better way to supply these.

This is the PSC switchstand kit.



The next question is do I replicate it or design another pattern. Some googling then found images and drawings

Switchstand001Well, in the end I decided that as the known demand was for ones similar to the PSC ones my first effort would be something very similar.

First job was some 3D CAD.

Drawn in SolidWorks this is also a 3 part kit with two halves of the base and the pole. There is a clevis shown in the drawing but this won’t be included in the kit.

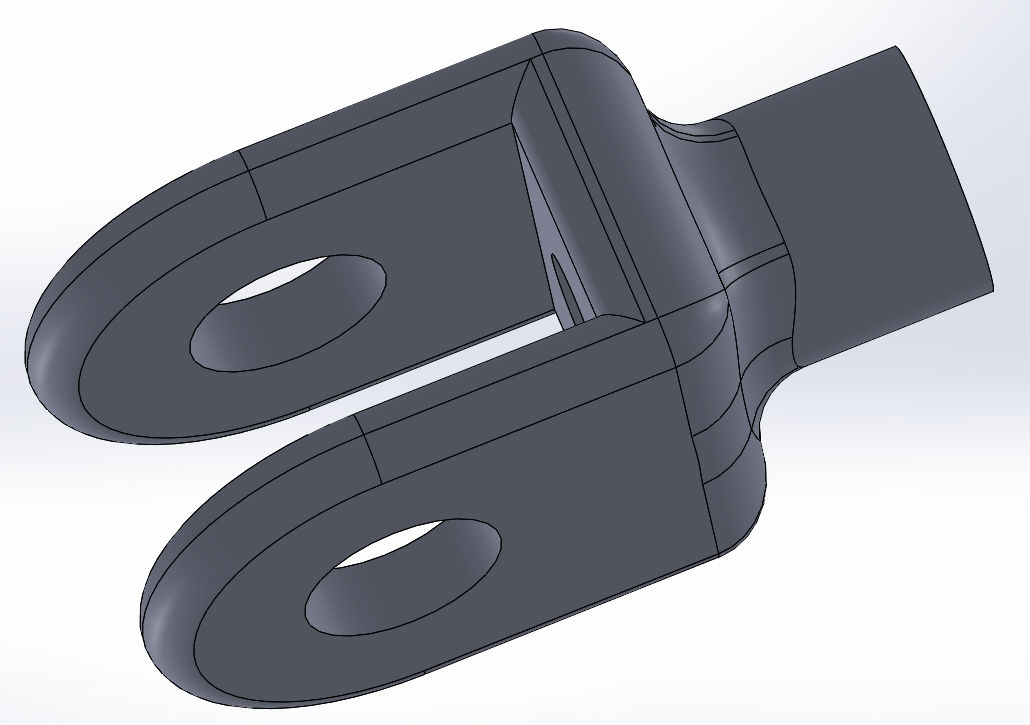

Clevis_imageThe reason for not including it is one of the pitfalls of doing this stuff in CAD on a 24 inch twin screen is that you can zoom in and the thing looks huge but then when you actually get a 3D print in actual size it is a) a credit to the 3D printer for being able to print it and b) too tiny to commercially reproduce in brass.

You’ll have to settle for making your own or just having bent wire.

Switchstand002From the 3D SolidWorks drawing STL files are created. These are the format that the 3D printer uses and they are e-mailed to the 3D printer of choice and then you sit back and wait for a week or so.

Eventually a tiny box arrives with the postman which you open and realise that what looked huge on the screen is in reality tiny.

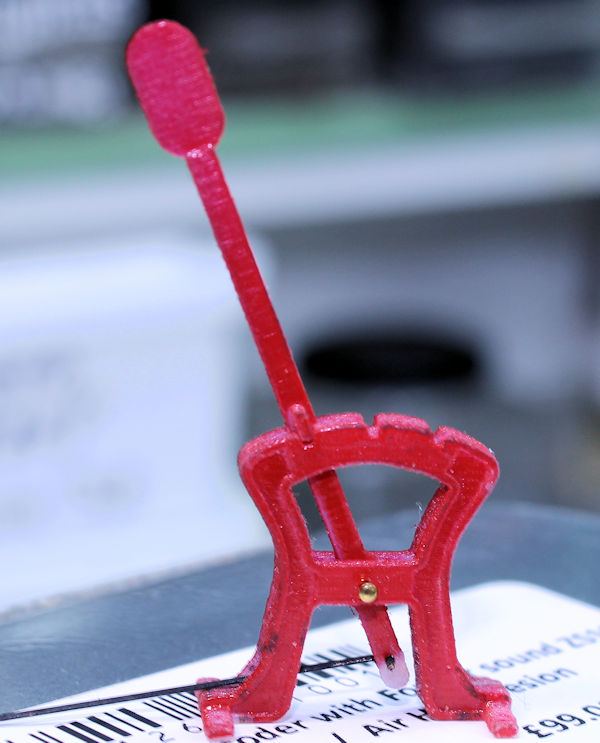

Switchstand-assembled600Prints tend to come in a translucent sort of colour which makes is difficult to see any of the detail so I usually just give them a waft of spray paint so you can actually see the thing before trying a test assembly.

As long as you are careful you can build the model up and make any minor alterations you want. If major alterations were needed you’d just get it reprinted having made the alteration in CAD.

So here we have the 3D print assembled.

What next? well the 3D patterns have gone off to the brass caster of choice and we await their efforts. They will use the parts to make a cold setting silicon rubber mould of the parts. With the pattern removed the mould is then filled with moulten wax which is allowed to cool. This can then be done many times to make lots of waxes. Waxes can be joined by sprues to make on pattern. These joind waxes are then suspended in a mould frame and a ceramic type mould in liquid form is poured around it and allowed to set. The mould is then heated so that the wax runs out or burns off leaving a void in a mould capable of standing high temperature. Moulton brass is then poured into the moulds and allowed to cool after which the mould is broken away and the casting cleaned up.

Loading

Battle of the Somme Commemoration

13612390_10153842230072153_3271363637149486625_n

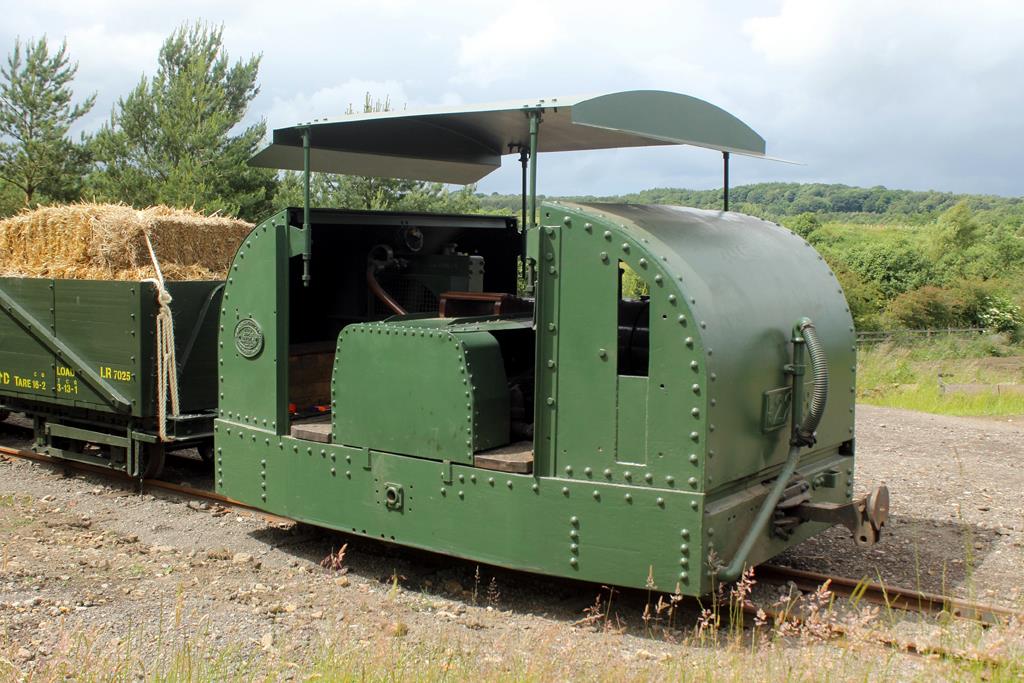

The Motive Power

Beamish Museum held a commemoration of the 100yr anniversary of the Battle of the Somme over the weekend 8th, 9th & 10th July. There were many exhibits and events on show with the theme of both commemorating and explaining the first world war and the Battle of the Somme.

As you’ve probably gathered by now I drive on the narrow gauge railway and, occasionally, the standard gauge colliery railway at Beamish and was there for the whole weekend. We ran the narrow gauge railway with ww1 equipment to demonstrate and explain the logistic support the railways provided.

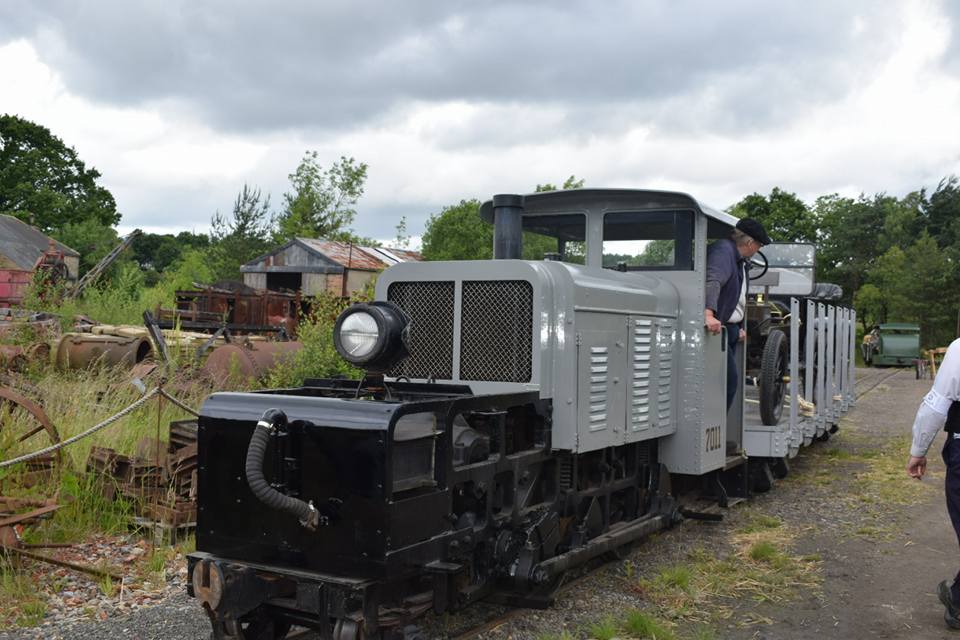

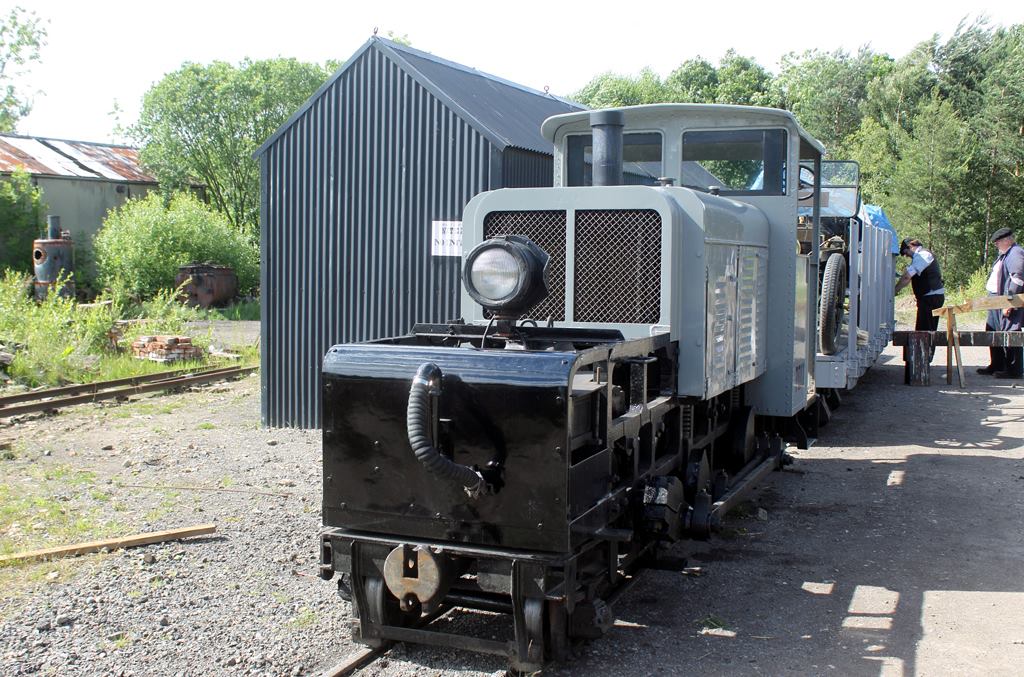

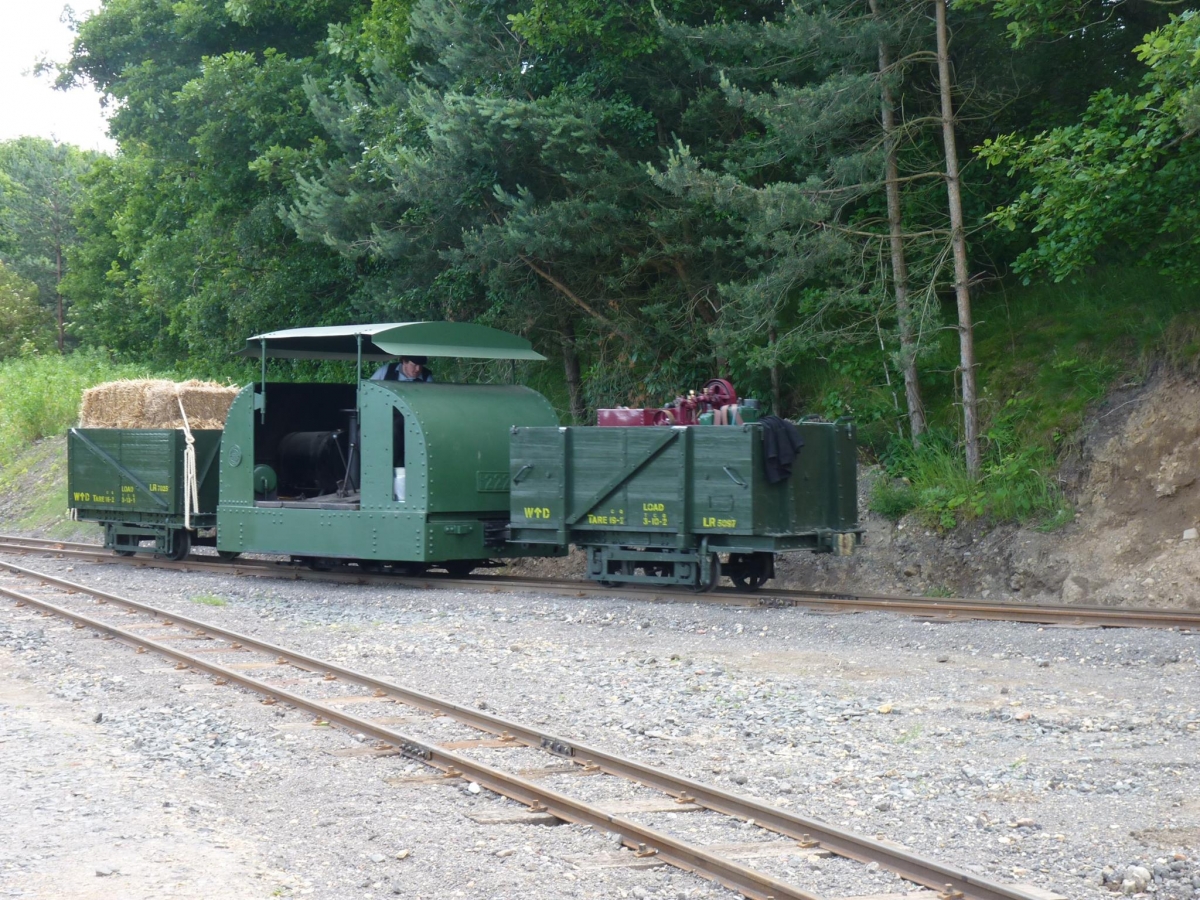

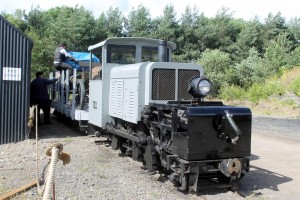

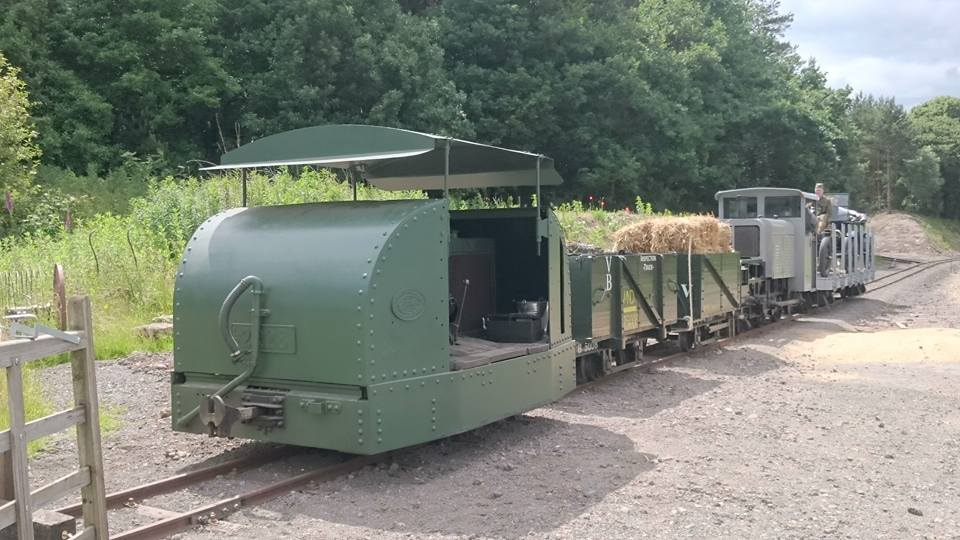

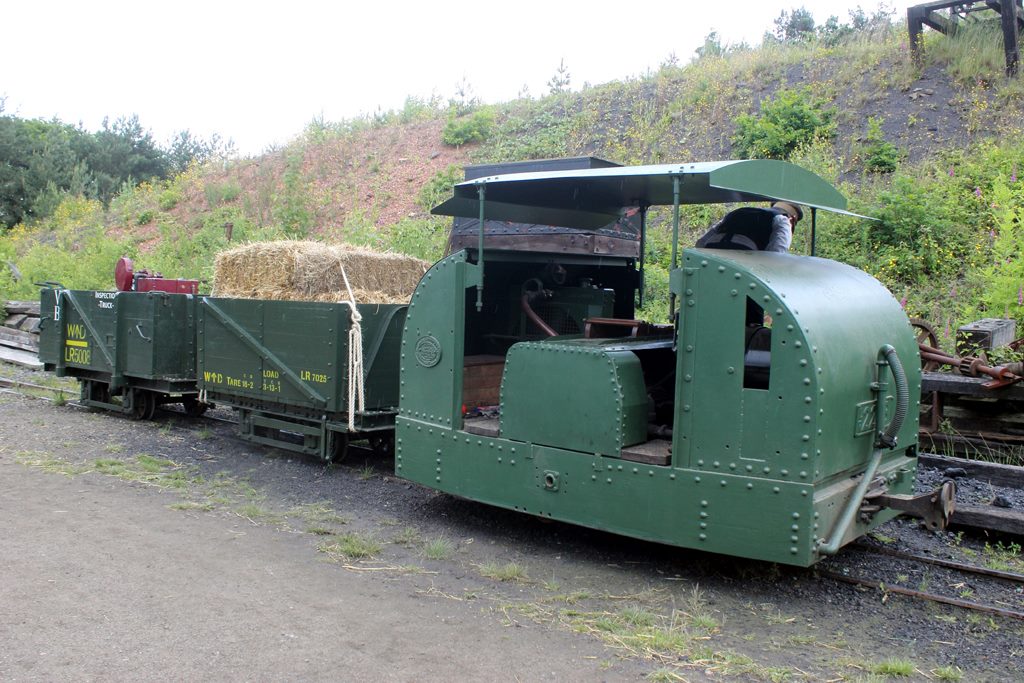

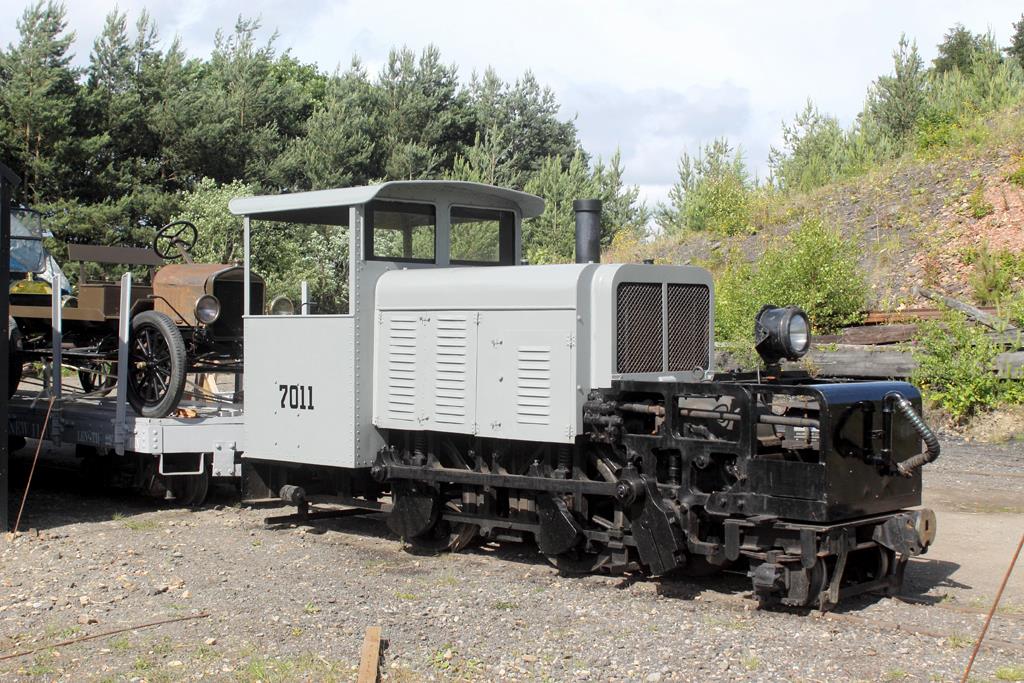

We were very fortunate to be able to borrow three items of motive power from the Festiniog Railway, effectively hijacking their world tour (France and Staffordshire), along with three wagons from the Moseley Trust at Apedale. With a Simplex (Mary Ann when not in uniform) and A & B four wheel wagons plus a Baldwin Gas Mechanical (Moelwyn in civvies) with a Pershing wagon loaded with a couple of Model T’s we could show a British and an American train.   We did mix them up through the weekend though.

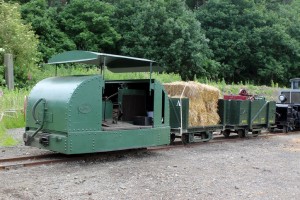

13613369_1152339094807521_2133369004867561104_o

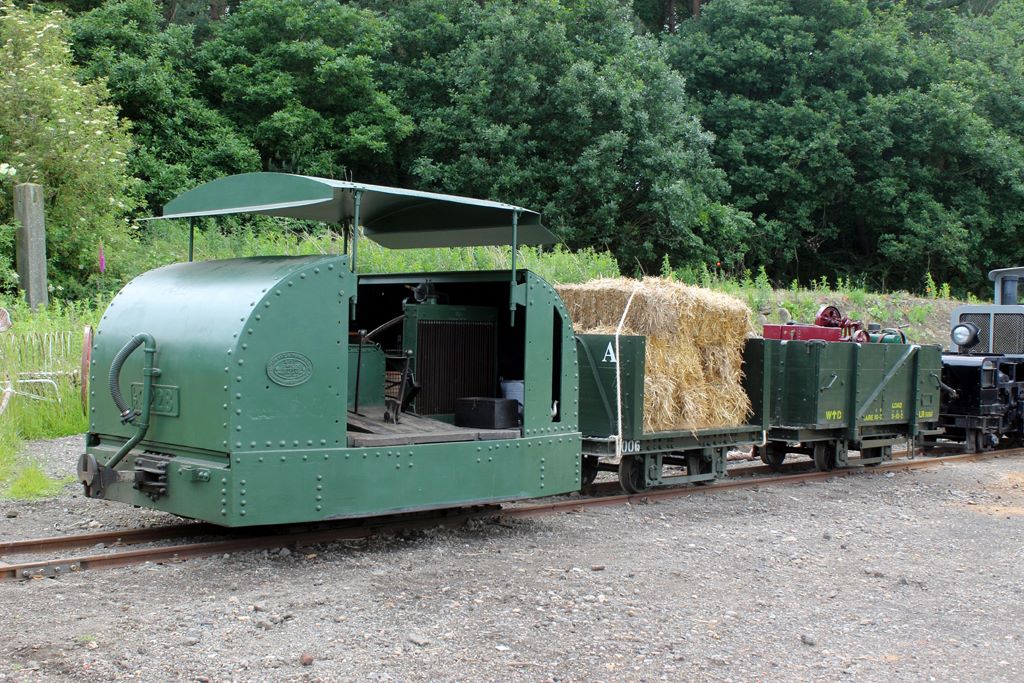

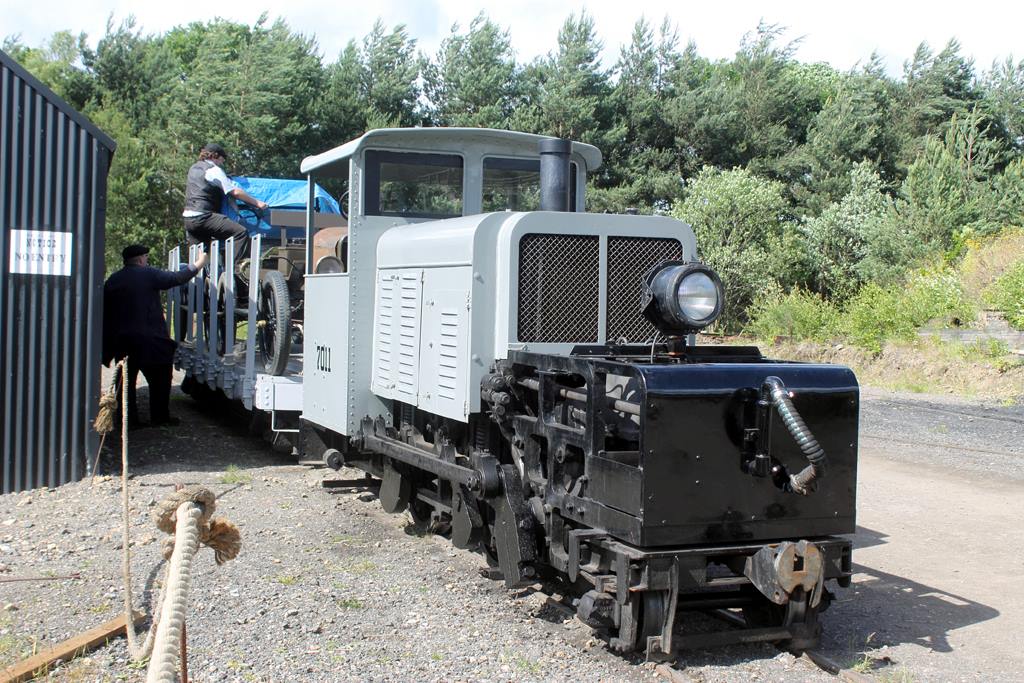

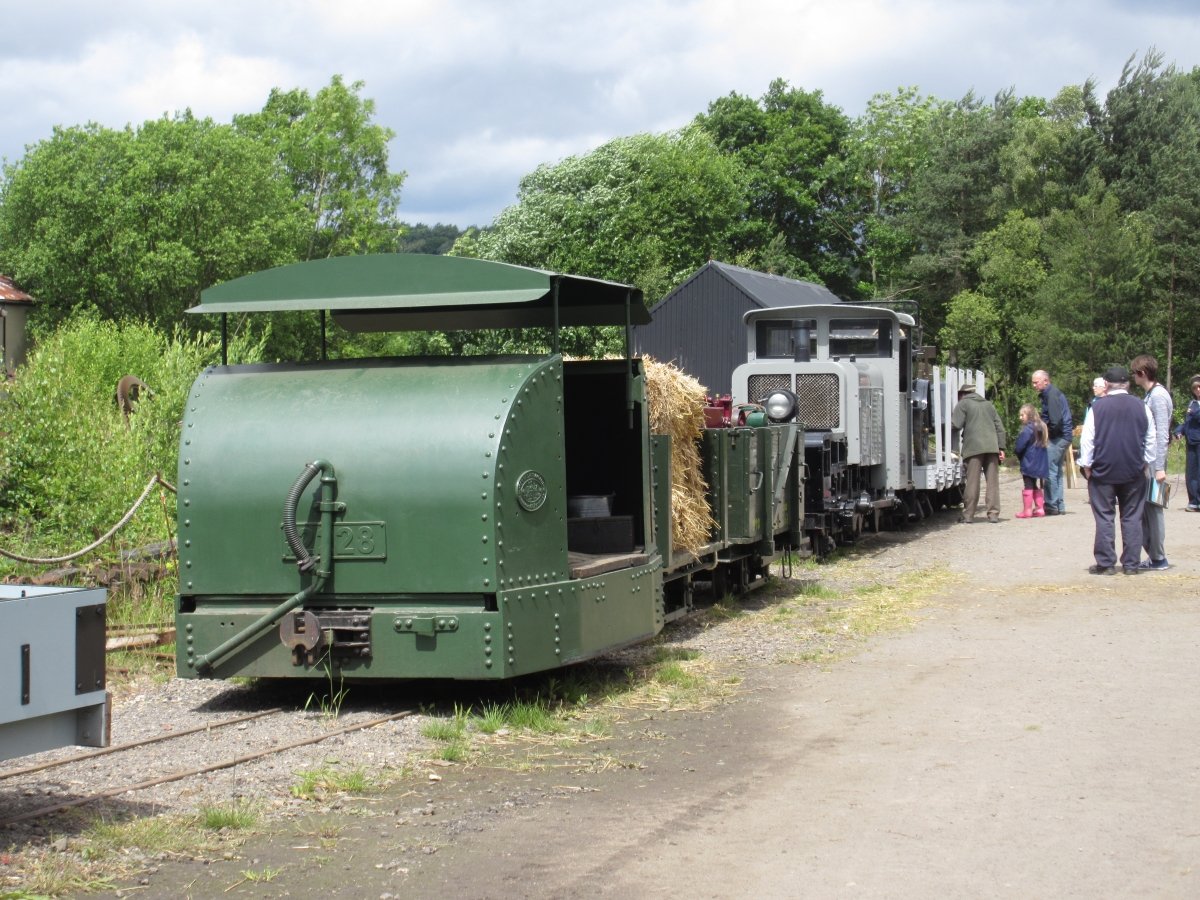

The British Train

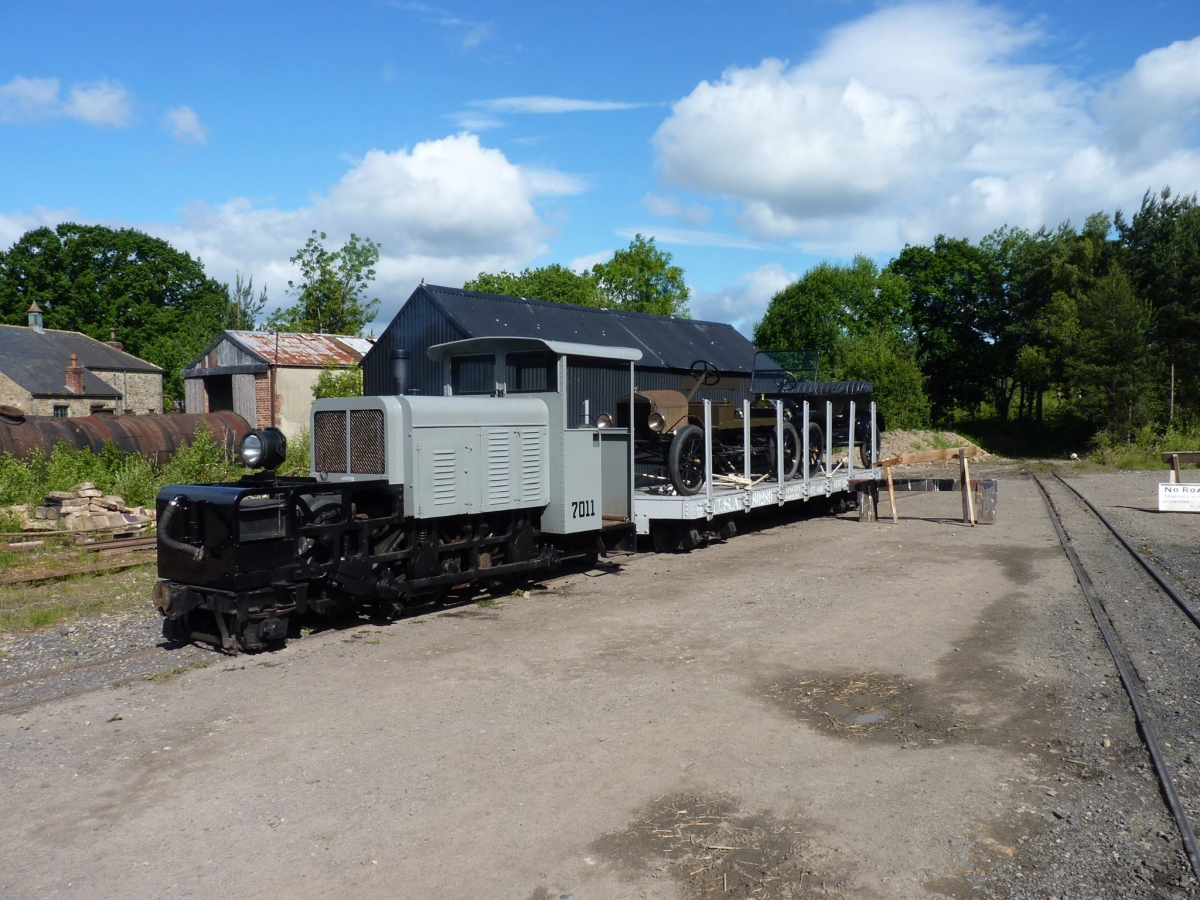

13580433_10153671778605205_7770479802801830260_o

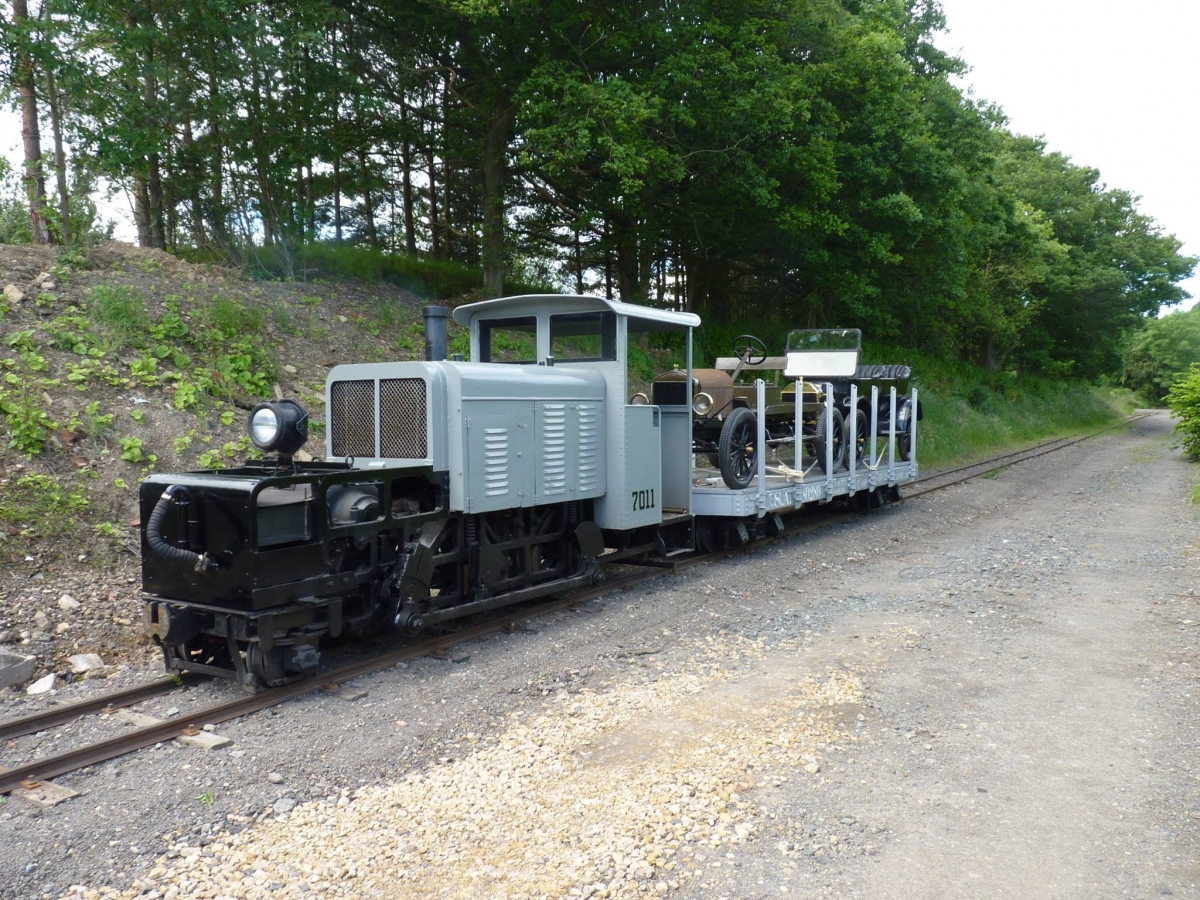

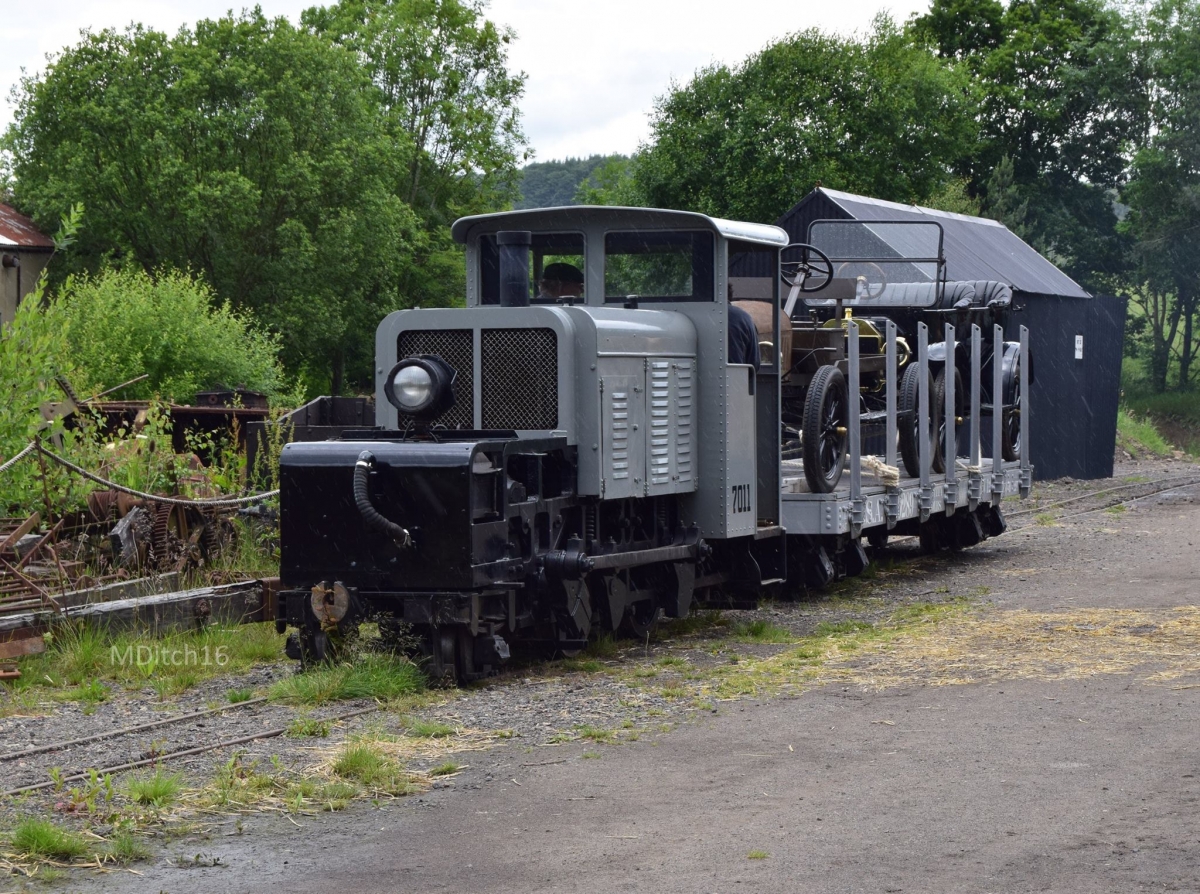

The American Train

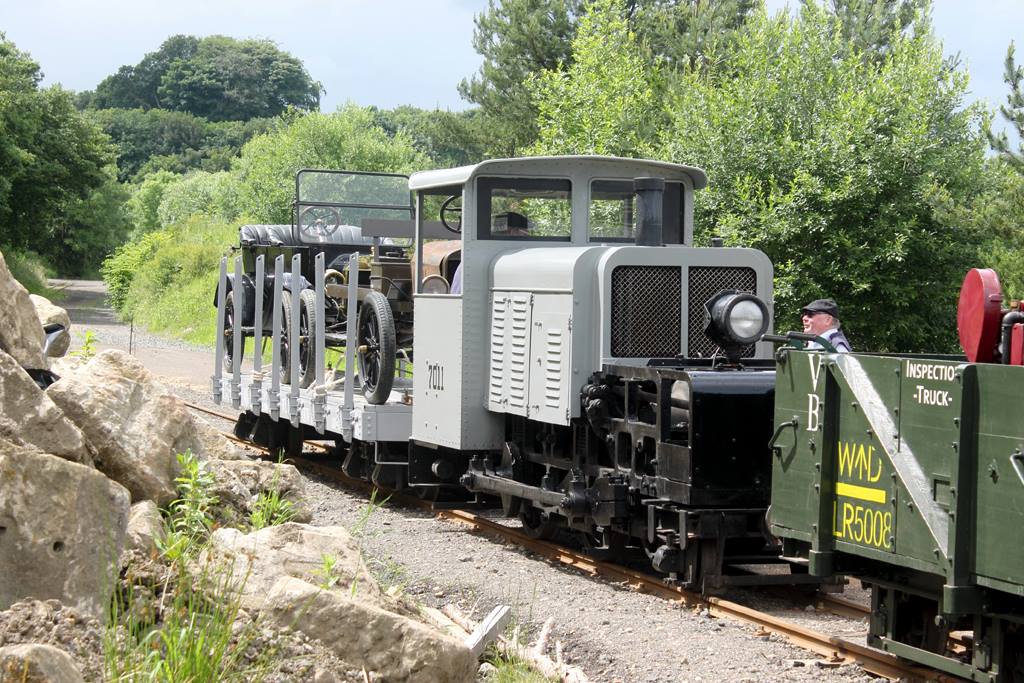

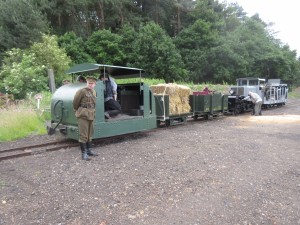

The railway at Beamish is now a triangle with additional sidings so trains were operating around the triangle leaving wagons on odd places then collecting them in a different order.

Just for added interest Moelwyn wouldn’t go round the tightest part of the newest bit of the triangle (to be honest, we were to scared to try it not wanting to have to re-rail it) so we propelled the wagon on to the tight bit and then went back around the triangle to the other end.

13582112_10153671778625205_8435967441337798263_o

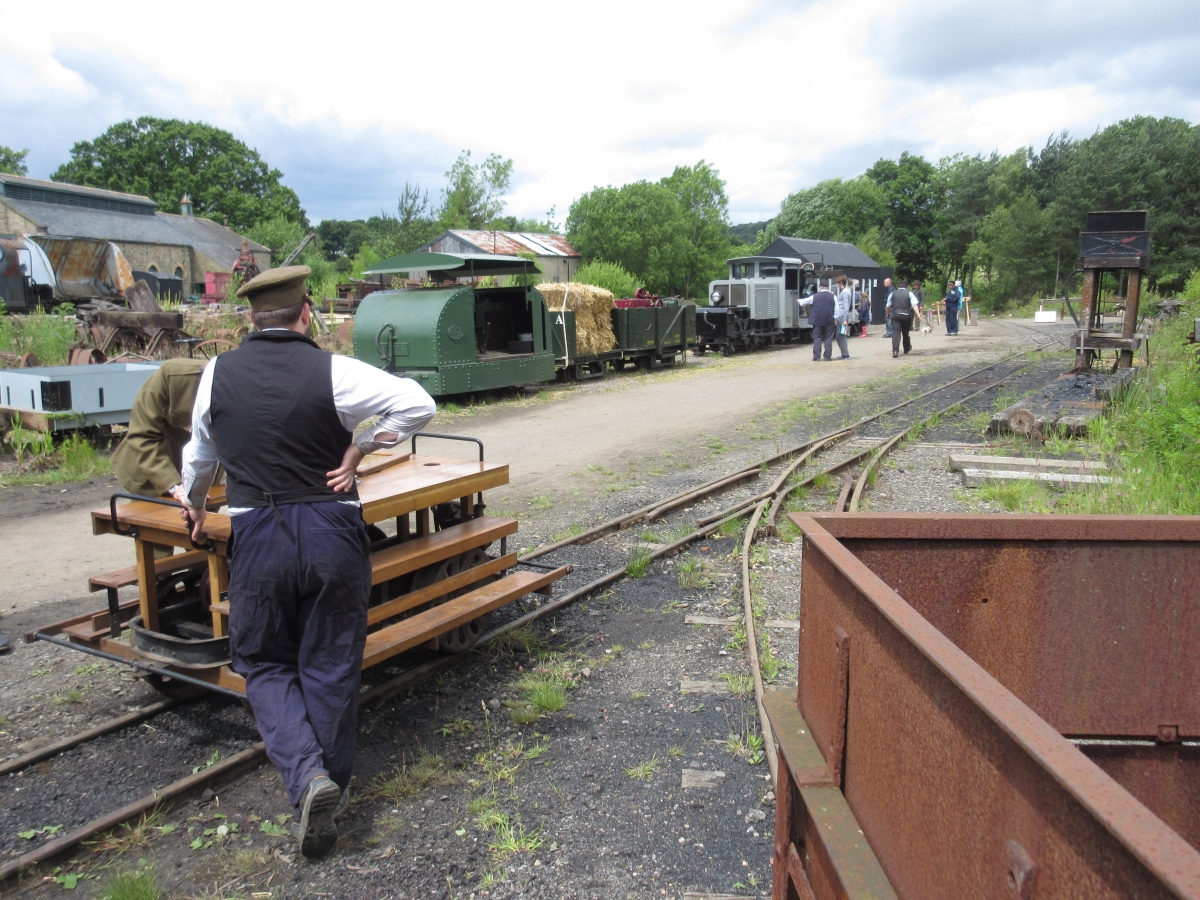

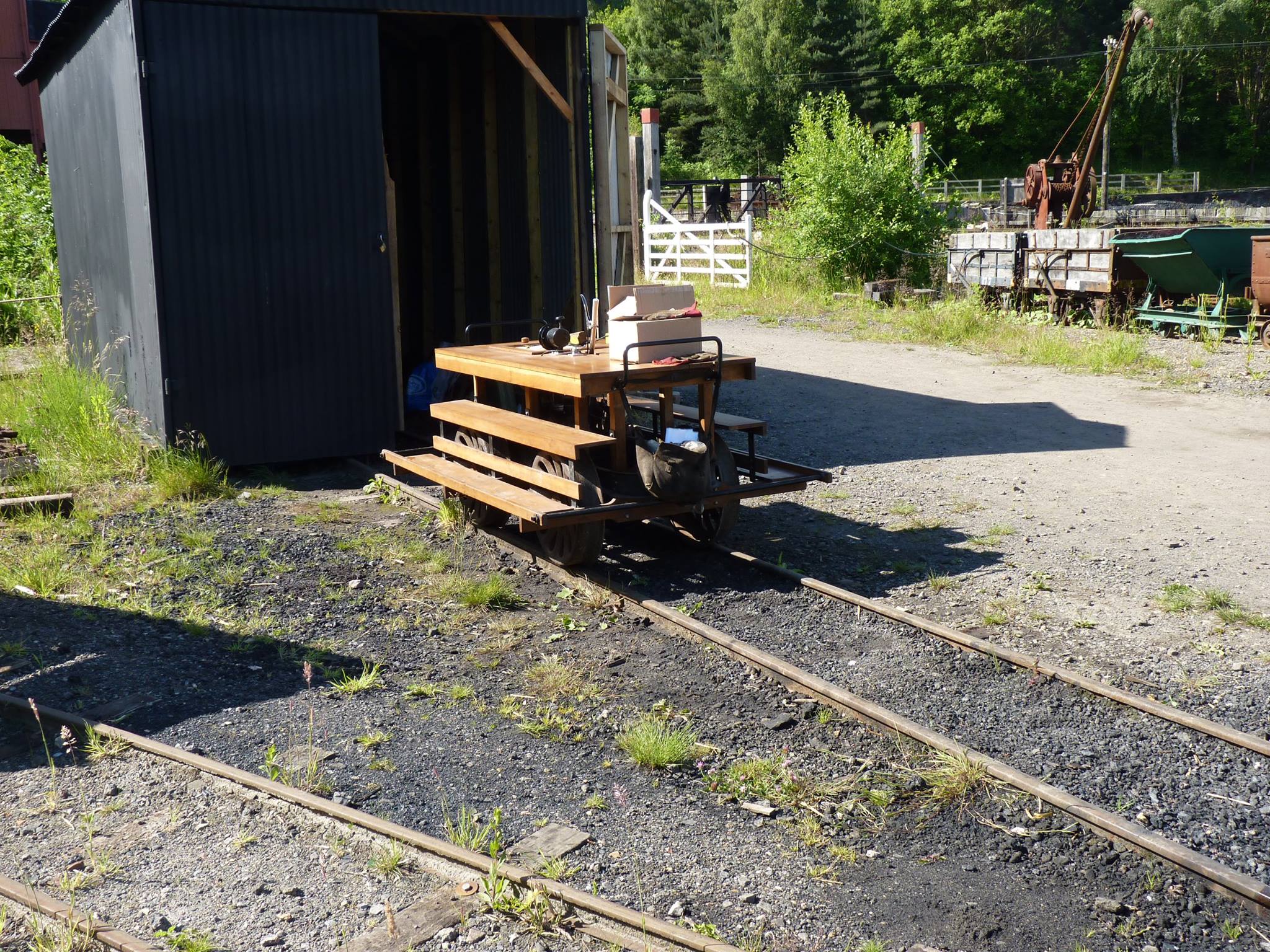

Buster in picnic table mode

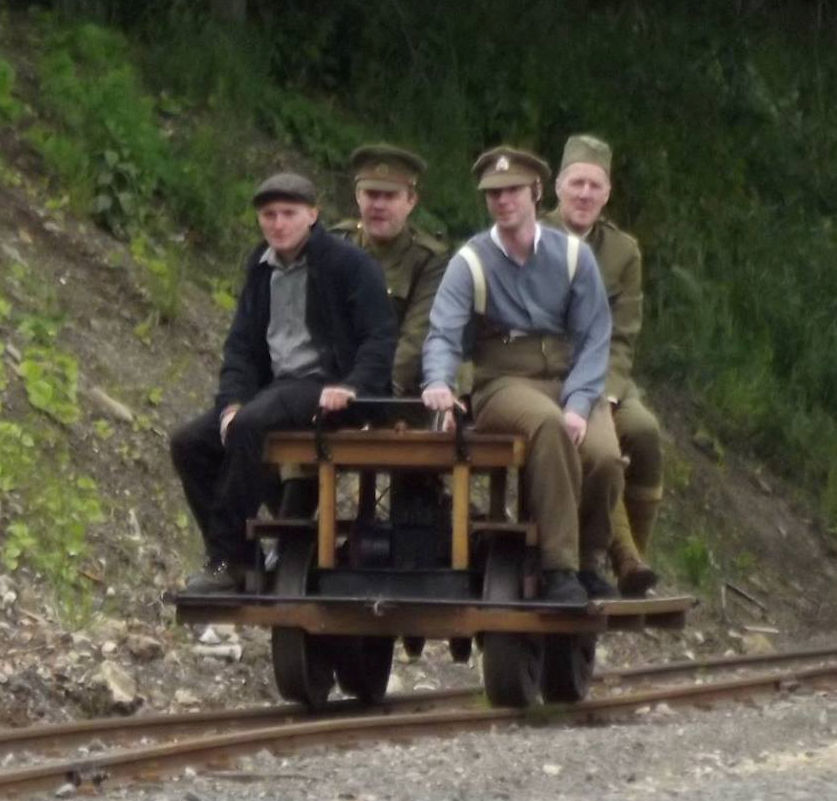

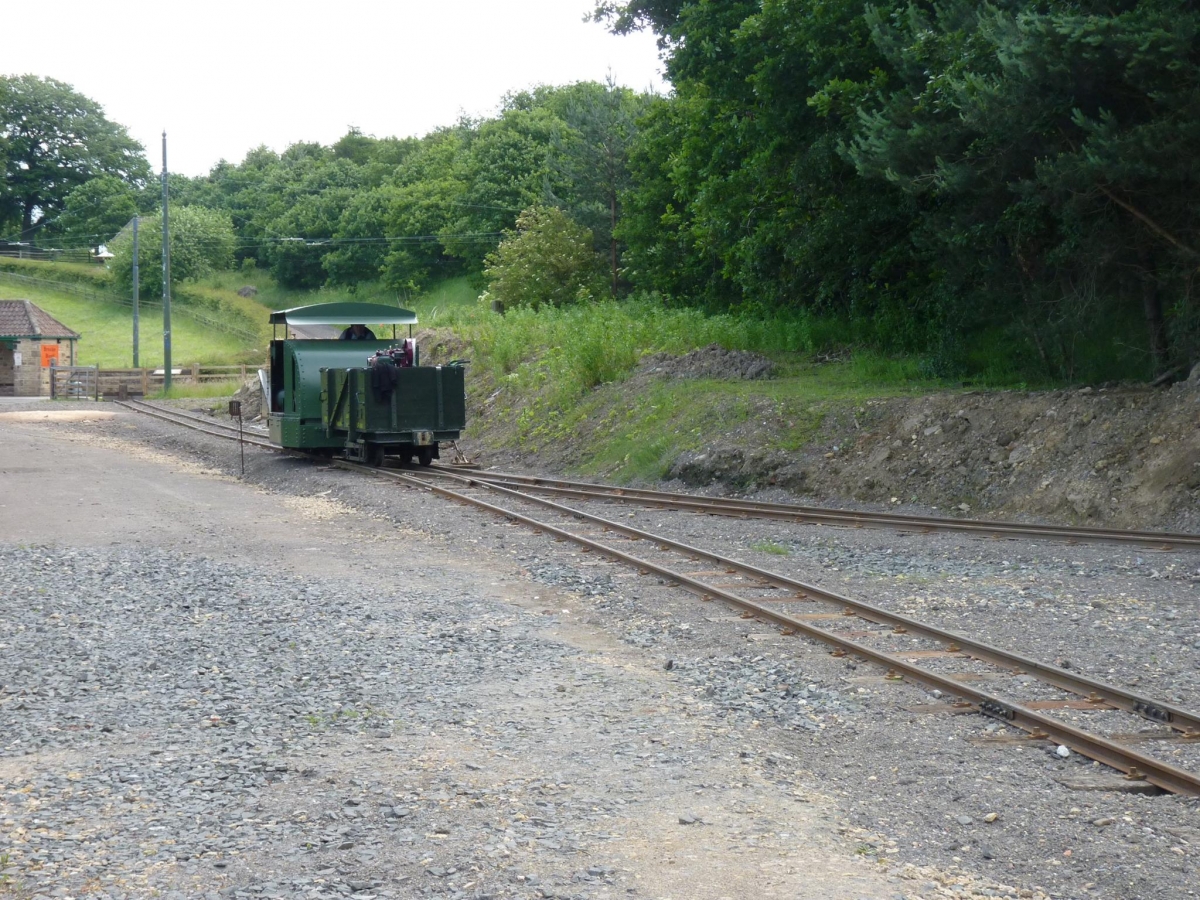

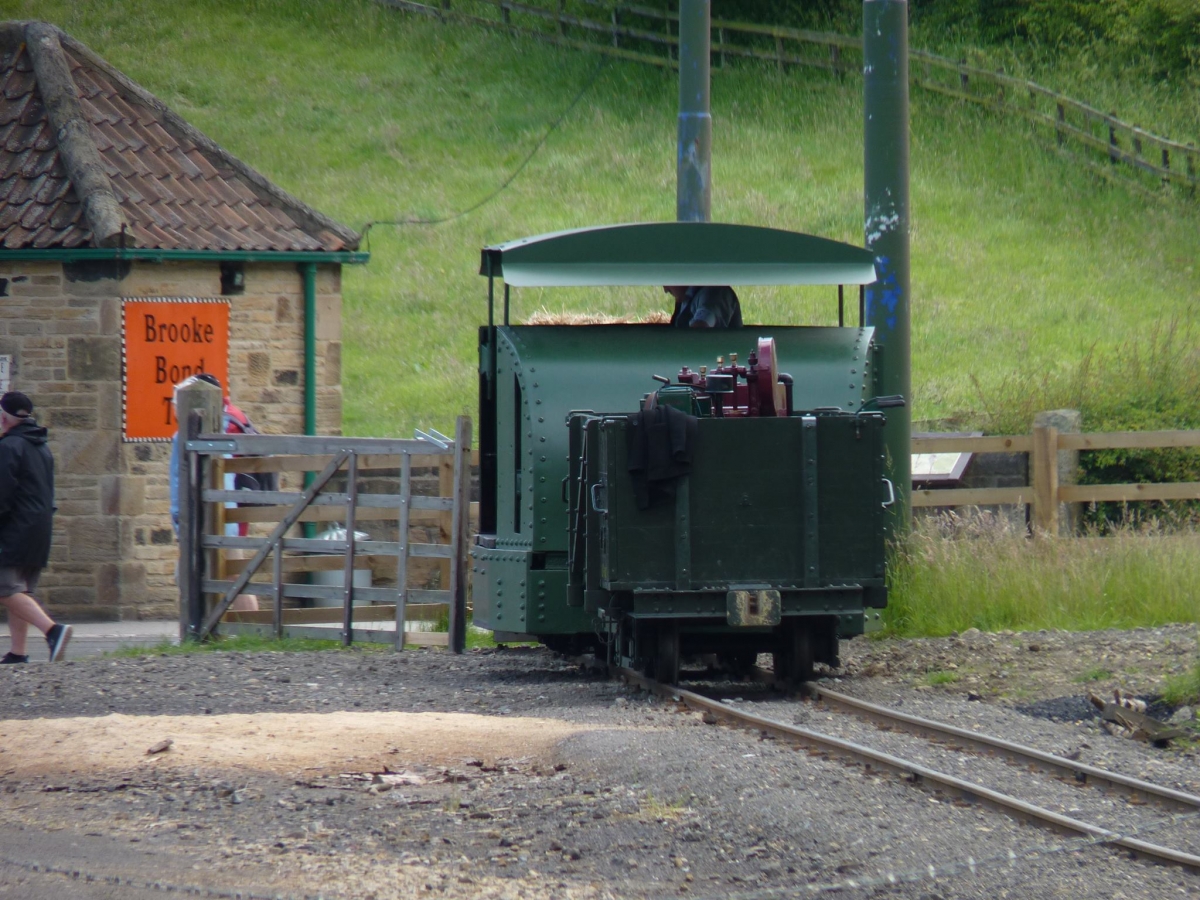

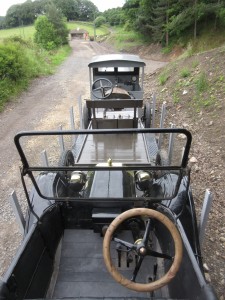

There was one other interesting conveyance. A Fairbanks Speeder (Buster in civvies). These were used for officer transport (probably decided they were expendable) at high speed and in one direction only. To go the other way you pick it up and turn it round.

Buster

Buster in a rare working foray to the extremities of the network

It was a bit temperamental through the weekend so it doubled as a picnic table in between occasional runs. A full run with four officers on board on the Sunday finished it off. A new gearbox awaits it.

On our small railway you could walk the entire line in the time it took to get it started but that wasn’t the point.

Below is a collection of other photos from the weekend with some more words beyond them.

On both Saturday and Sunday there was a parade starting at Pockerley and marching round to the town. Each day we took all the NG equipment to the Pockerley end of the line to be on display to those gathering for the parade and so we could see the parade.

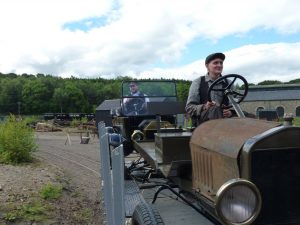

13613182_10153671778745205_503482619812043176_o

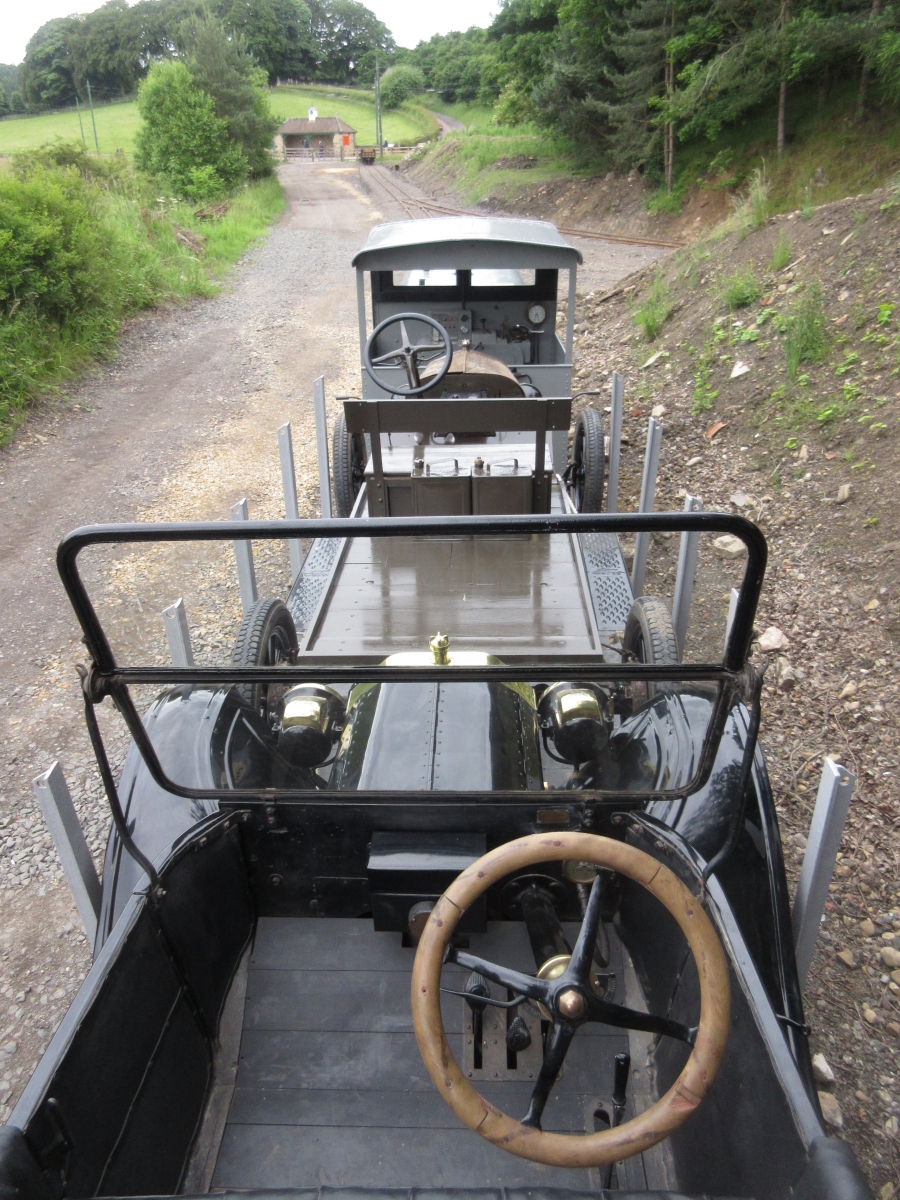

The only way you’d trust this pair in a model T



13522757_10153671778750205_5158671725568246714_o

Captain Wilkinson and his driver Private Collins

13576907_10153671778855205_6307975891981587162_o

Parade gathering

13626473_10153671778810205_4956277896585722666_n

Lancers ready to go



















There was lots to see around the event. The album below has a selection of other peoples photos of the various happenings. These, and more, can all be seen on the Beamish Museum Facebook page.

So, why no steam? We did first world war steam operation as part of the Great War Steam Fair in April for which we borrowed engines from the Festiniog and Moseley Trust. Our own engines are not currently available although we are working on it.

IMG_3459

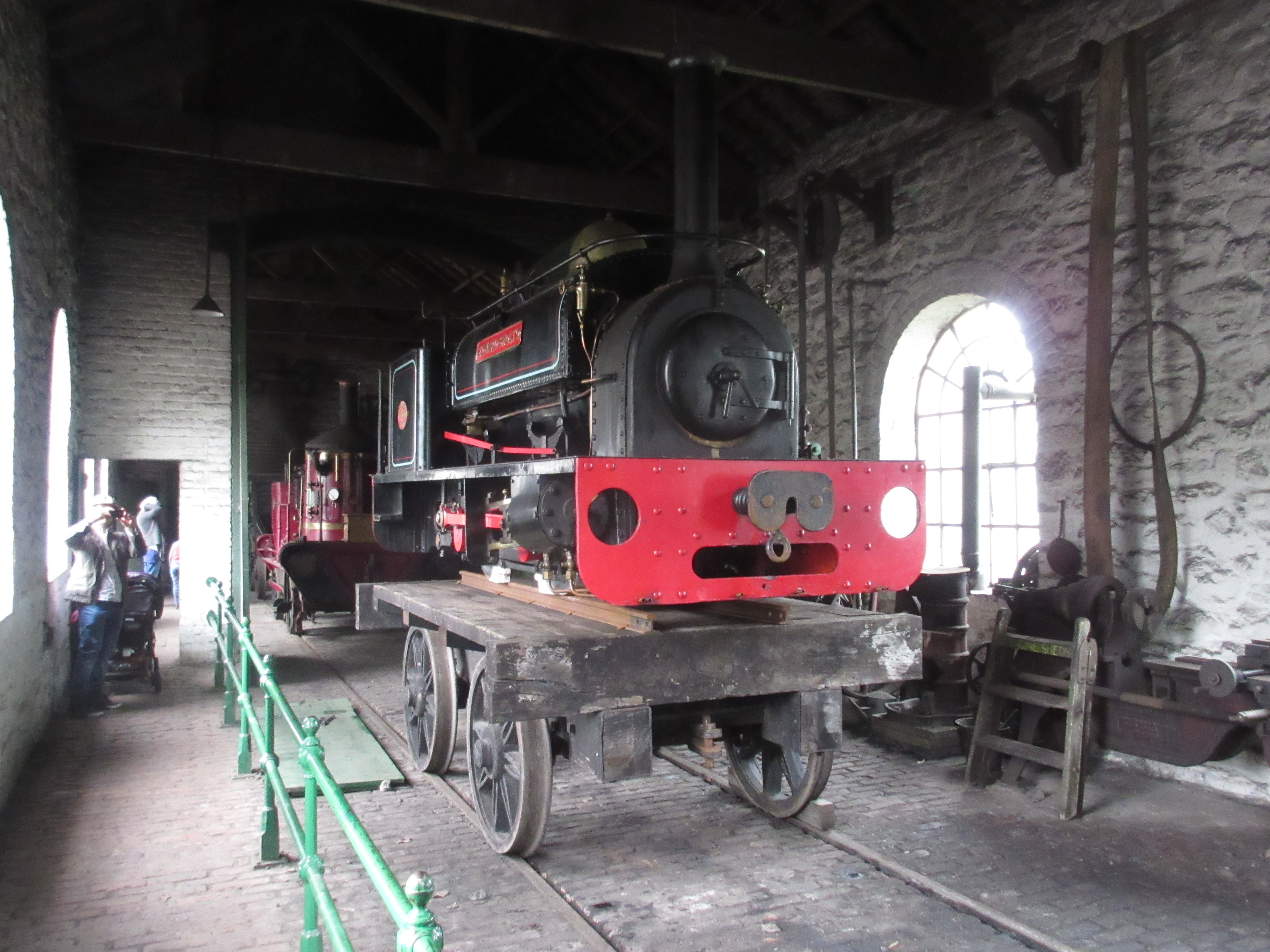

Edward Sholto: Stored on a standard gauge wagon. Out of traffic pending a re-tube of its boiler so it will eventually be moved to the engineering workshop for this to happen but not until our other engine is done

IMG_3407

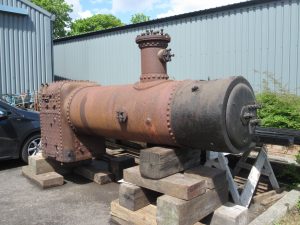

Glyder: Well Glyder’s boiler ready for the tubes to come out. Glyder was exported to the USA from Penrhyn Quarry, returned recently and displayed in the colliery engine shed at Beamish. Late last year it was moved to the workshop and its return to service started.



There is always plenty to see at Beamish Museum although not all the railways operate everyday. The narrow gauge only operates at events at the moment as we currently rely on borrowing loco’s.

A visit is highly recommended. For more information on Beamish try these links

Beamish Museum Website

Beamish Museum Facebook Page



Loading

Economic Suicide (short term I hope)

So here we are, two and a bit weeks past the EU referendum. Since then as EDM Models I haven’t done a newsletter and haven’t said much publicly about the result but I feel the need to say something about it from the point of a business in an optional leisure sector.

Firstly, I think we need to get this bit out of the way, yes, I voted to remain. However, the thing that I need to make clear is that it wasn’t because I thought the present arrangement was perfect or that I don’t think our relationship with the EU needs to change but that I was, and remain, convinced that the option to leave offered way too many unknowns all talked down by rhetoric and damned lies. The other side weren’t much better but didn’t drive round in a bloody great red bus with a lie painted on the side.

Secondly, in the long run (very long run), it may well be the best thing we ever did but a) I am not sure I will live to see that and b) I am not sure mine and many other small businesses will ever see the benefit.

Right with the generalities out of the way let’s talk some specifics as they apply so far to my model business.

  • Immediate:  People have stopped spending!  Understandable really as everyone is now worried about the future and the first thing you do is reign in expenditure. Survivable, I hope so, but toy trains, even specialist narrow gauge toy trains, are a luxury. However, they are my livelihood so if people stop spending and continue to do so I don’t have a business.

2016-07-07_12-19-05



  • Very Soon:  Models are going to get more expensive. This is down to the immediate plummet of the pound against the US dollar and that some items are out of stock now and need replacing. I did some examples of now and next delivery pricing when the rate hadn’t yet reached its record low

Price Comparison

  • Longer Term: Models are going to get even more expensive. They were already headed that way with costs rising in China but they’ve just gone up again because of the exchange rate, shipping costs will rise as fuel costs go up. Yet to come are any impacts from trade deals or the lack of them – that bit is crystal ball territory but it’s not often (if ever) prices fall.

One YearThe unpredictability is the real killer. In recent years whilst the exchange rates have always fluctuated they do so in slow increments and over a long time which allows a business to plan and take them into account and allows them to forecast a price in GBP that they can stick to. Sure, the graph for one year shows ups and downs and a steady decline but it has an element of long term predictability over the short term ups and downs.

Already in the two weeks that have elapsed so far as well as my own observations of what its going to do to prices there have been two communications from UK suppliers of products made in Europe (paid for in Euro’s) and China (USD). The former sell currently available products so that was an immediate price increase. To some extent that is at least manageable because it says the price is X, take it or leave it and a trader can pass that message on. The second was an immediate small increase on some imminent items and a “we reserve the right to, but will try not to, pass on cost increases due to currency fluctuations as a `currency escalator’ adjustment”. Here we are talking reservations for production due over the next year to 18 months. Hard to see what else they can do, they’re basically saying “we haven’t a clue what its going to cost” which is a hard sell to pass on to a retail customer, “dear customer, please commit to buying this fifteen hundred quid locomotive due next year but, sorry, we haven’t actually got a clue what its going to cost!”

I have seen many `experts’ (and what do they know) saying small businesses need to have a plan so here is mine: –

Plan

What is it going to take to fix it? Well there are all sorts of things yet to be resolved such as our relationships, business and otherwise, with other countries. None of that is going to be fixed real soon but the exchange rate reacts quickly to major world status changes. The current plummet results from the UK saying `stop the world we want to get off’ so another world sized change may be needed to get it to swing the other way. I’ll just leave this image here………….Trump
